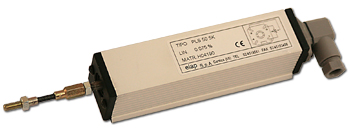

The linear motion potentiometers series PLS have a 31 mm square section case and 6 mm diameter shaft. Their measuring strokes range from 50 to 950 mm, and their standard resistive value is 5 KOhm.
The conductive plastic resistive element grants the transducer a long life (20,000,000 motions), high independent linearity (±0,075% tolerance) and virtually infinite resolution.
Thanks to their high protection degree against environmental agents the potentiometers series PLS are suited for severe applications, even outdoors, at extreme temperatures.
mm 50 – 100 – 150 – 200 – 250 – 300 – 400 – 500 – 750 – 950
5 Kohm (standard) – 2 Kohm, 10 Kohm, 20 Kohm on request
