G.H. Binroth carries a wide selection of encoders, including various types of shafted and hollow bore incremental encoders, rotary encoders and geared potentiometers. Linear encoder products include Elap self-guiding transducers and Elcis wire-actuated transducers. Each of these top brands can withstand tremendous strain during use, with the Elcis UL-listed explosion-proof incremental encoders in particular being able to withstand explosive atmospheres caused by gas or dust.

Linear Encoder Products

Elap Linear Transducers
Elap Linear Transducers

Incremental linear transducers are usually employed on industrial machines to count, visualize, and control systems. They allow the machines to achieve programmed positionings, or pre-determined step shifts and display length or thickness measures. Elap linear transducers range includes several sensor types, each of which can be supplied with different strokes and resolution values to suit your specific needs.


Elap Linear Transducers PD Series
Linear transducers series PD–PE
  • High reading resolution (up to 0.005 mm)
  • Easy mounting
  • High protection against environmental agents (IP65)
  • Strokes: 60 ÷ 990 mm
Linear transducers series PD–PE

Elap Optical Scale Series KD
Optical Scale Series KD

The linear optical readers series KD are accurate and reliable, especially suited for applications in severe industrial environments.

Optical Scale Series KD

Elap Optical Scale Series KP
Optical Scale Series KP

The compact dimensions of the KP series optical linear scales means they can be applied even on small-sized machine tools such as millers, lathes, grinders and spark erosion machines.

Optical Scale Series KP
Elap Linear Motion Potentiometers
Elap Linear Potentiometers

Widely employed on industrial operating machines, linear motion potentiometers are specially designed to measure and control linear displacements in absolute mode. Since they are absolute detecting systems, potentiometers keep the actual position data at power off: therefore they are peculiarly suited to be employed on machines where it is difficult to reset the axis zero point at the system power on, for instance when material machining lasts for a long period. ELAP offers a variety of mechanical sizes, strokes, resistive values and mounting fittings to meet any application requirement.


Elap Linear Potentiometer PLS Series
Series PLS
  • 50 ÷ 950 mm strokes
  • 31 mm square section case
  • 6 mm diameter shaft
  • Axial connector outlet
  • IP65 protection degree
Linear potentiometer series PLS

Elap Linear Potentiometer PL2S Series
Series PL2S
  • 50 ÷ 500 mm strokes
  • 31 mm square section case
  • 2 fixing ball joints at the ends
  • 6 mm diameter shaft
  • Radial connector outlet
  • IP65 protection degree
Linear potentiometer series PL2S

Elap Linear Potentiometer PL231 Series
Series PL231
  • 50 ÷ 750 mm strokes
  • 31 mm square section case
  • 2 fixing ball joints at the ends
  • 8 mm diameter shaft
  • Radial connector outlet
  • IP65 protection degree
Linear potentiometer series PL231

Elap Linear Potentiometer PM Series
Series PM
  • Compact dimensions
  • 21 mm square section case
  • 25 to 150 mm strokes
  • 5 mm diameter shaft
  • Radial connector outlet
  • IP63 protection degree
Linear potentiometer series PM

Elap Linear Potentiometer PM2S Series
Series PM2S
  • Compact dimensions
  • 21 mm square section case
  • 25 to 150 mm strokes
  • 5 mm diameter shaft
  • 2 ball joints at the ends
  • Radial connector outlet
  • IP63 protection degree
Linear potentiometer series PM2S

Elap Linear Potentiometer PR Series
Series PR
  • 26 mm diameter round section case
  • 25 to 150 mm strokes
  • 5 mm diameter shaft
  • Radial connector outlet
  • IP65 protection degree
Linear potentiometer series PR

Elap Linear Potentiometer PR2S Series
Series PR2S
  • 26 mm diameter round section case
  • 25 to 150 mm strokes
  • 5 mm diameter shaft
  • Radial connector outlet
  • Two ball joints at the ends
  • IP65 protection degree
Linear potentiometer series PR2S

Elap Linear Potentiometer PLS-V Series
Series PLS-V
  • Strokes: 50 to 950 mm
  • Supply voltage 18÷30Vdc
  • Output: 0÷10dc max.10 mA proportional to the reached position
  • Accuracy: ±0,25% of the measured value
  • Protection degree: IP65
Linear potentiometer series PLS-V

Rotary Encoder Products

Drive Systems AC, DC Tachos & Encoders
AC, DC Tachos & EncodersHollow shaft and output shaft AC and DC tachogenerators and hollow shaft encoders for a suitable positioning and speed control on our DC and brushless motors.
Main Features
  • DC tacho DC06/10/14/19: 6, 10, 14 or 20VDC (generated voltage at 1000rpm)
  • DC tacho DC20/60: 20 or 60VDC (generated voltage at 1000rpm)
  • AC tacho AT101/202: 24VDC (generated voltage at 1000rpm)
  • Encoders: see data sheet “E”
More Information

DC10, DC10R, DC20R, DC20RF, DC60R, DC60RF, EH30

Download Product Catalog



Elap MEM-BUS Profinet Absolute Encoders
Elap MEM-BUS Profinet Encoders

Elap absolute MEM-Bus encoders series complies with the Encoder Profile Specifications V4.1 version 3.162 related to Profidrives. They fulfil the requirements of the Application Classes 3 and 4, providing all functions for scaling factor, preset, rotational direction, positioning and speed values, diagnostic. MEM-Bus encoders support the RT Real Time and IRT Isochronous Real Time transmission mode, thus ensuring fast, accurate and safe data transfer.

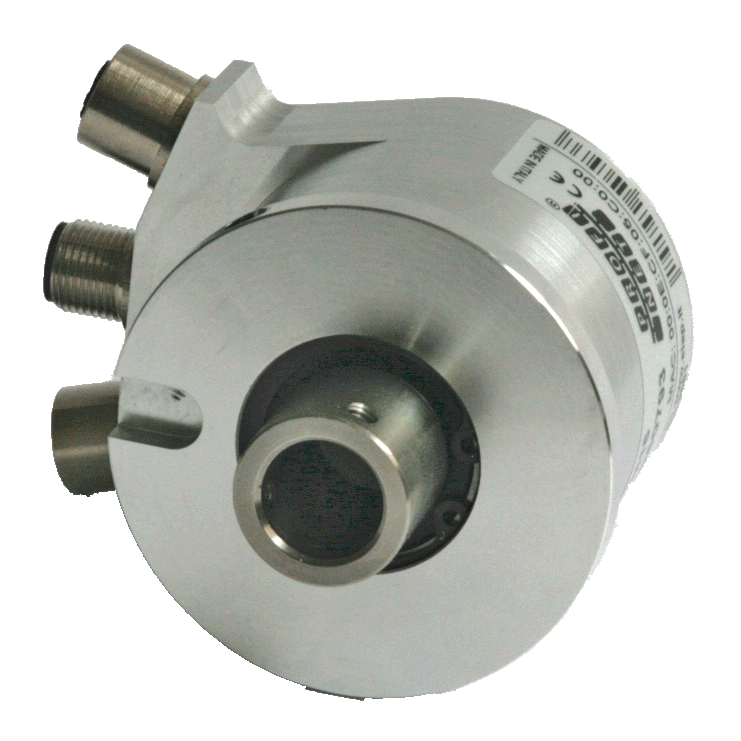

Elap MEM410 Profinet Absolute Encoder Series
Elap MEM410 Profinet Absolute Encoder Series
  • Hollow shaft for motor mounting
  • Ø 8, 10, 12, 14, 15 mm hole

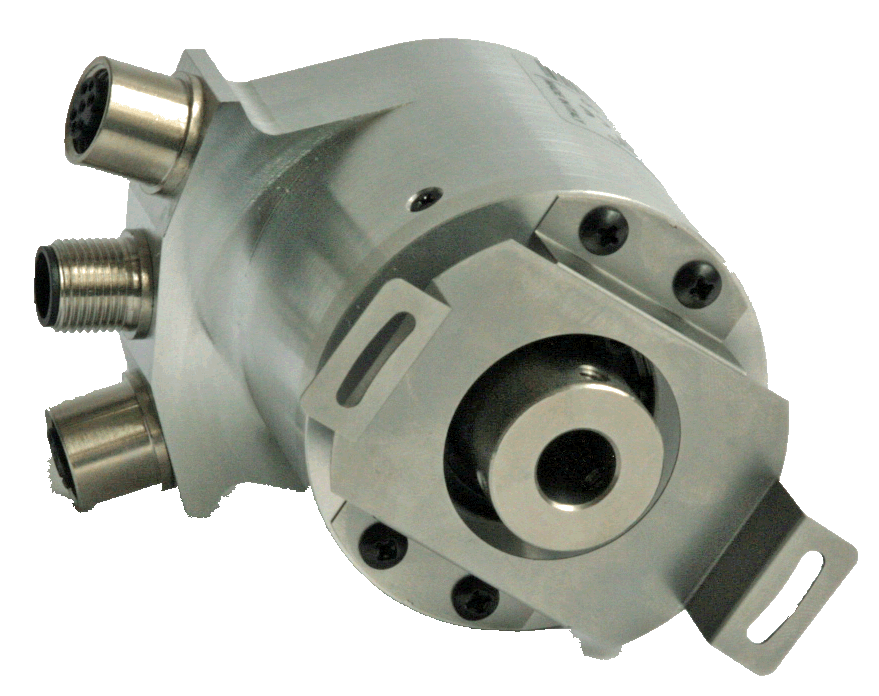

Elap MEM430 Profinet Absolute Encoder Series
Elap MEM430 Profinet Absolute Encoder Series
  • Hollow shaft for motor mounting
  • Ø 8, 10, 12, 14, 15 mm hole
  • Fixing by elastic support

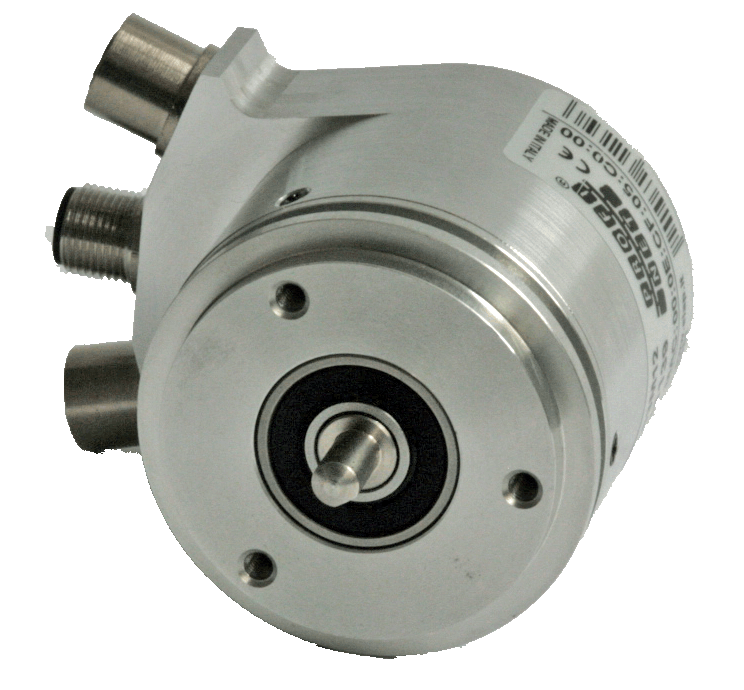

Elap MEM520 Profinet Absolute Encoder Series
Elap MEM520 Profinet Absolute Encoder Series
  • Ø 58 mm round flange
  • Servo coupling
  • Ø 50 mm centering mask
  • Ø 6, 8 o 10 mm shaft

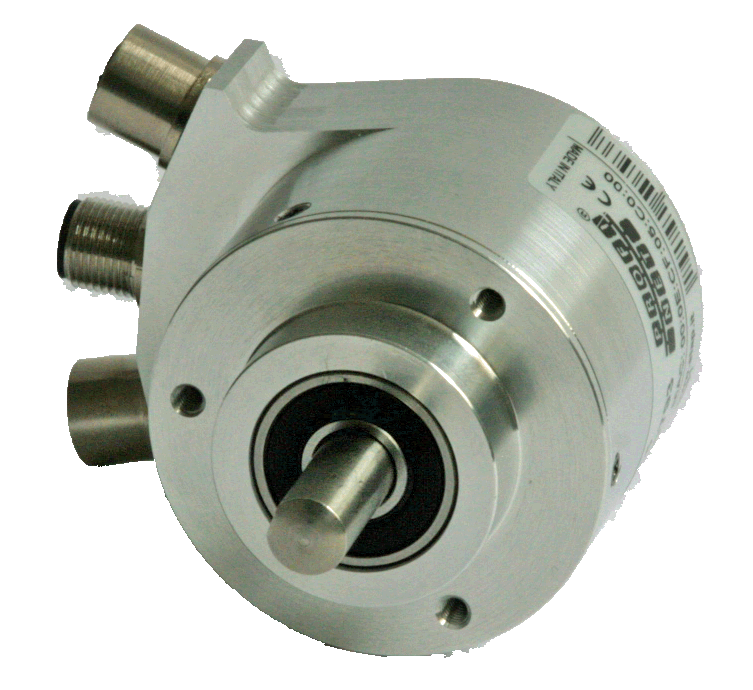

Elap MEM540 Profinet Absolute Encoder Series
Elap MEM540 Profinet Absolute Encoder Series
  • Ø 58 mm round flange
  • Ø 36 mm centering mask 3
  • M4 holes at 120° on Ø 48 mm
  • Ø 6, 8 o 10 mm shaft

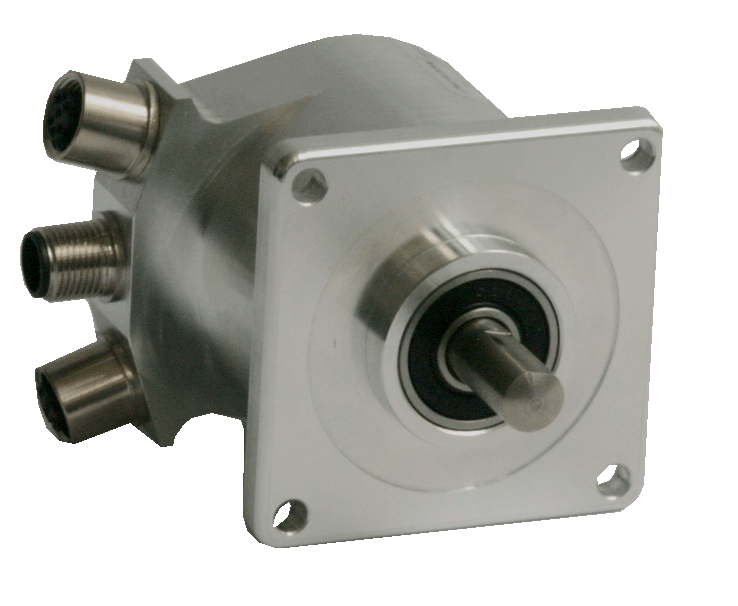

Elap MEM620 Profinet Absolute Encoder Series
Elap MEM620 Profinet Absolute Encoder Series
  • 63.5x63.5 mm square flange
  • Ø 31.75 mm centering mask
  • Ø 6, 8 o 10 mm shaft

Elcis Incremental Shaft Encoders
Elcis Incremental Encoders

Elcis' range of incremental encoders is composed of more than 120 transducers with ø 19 ÷ ø 250 mm, with resolutions from 1 to 90000 pulses/revolution according to the model chosen.



Elcis Absolute Shaft Encoders Elcis Magnetic Encoders
Elcis Magnetic Encoders

High-precision linear measurement.
